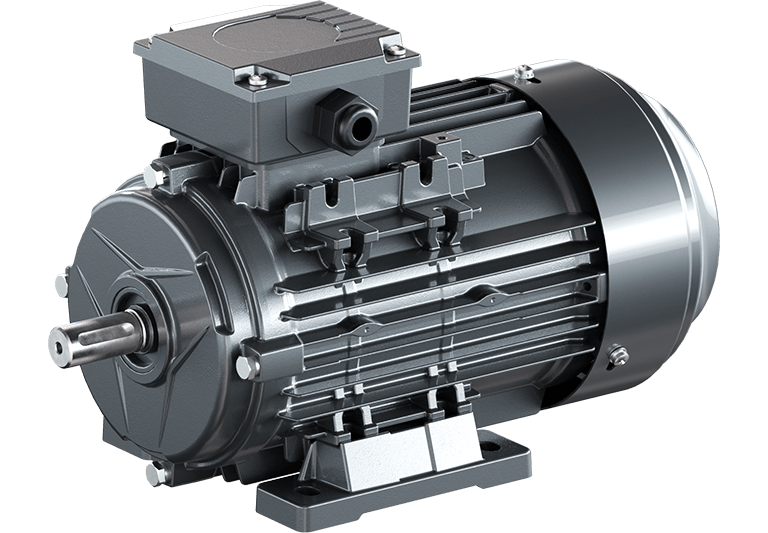

B3 Aluminum shell IE3 national standard motor

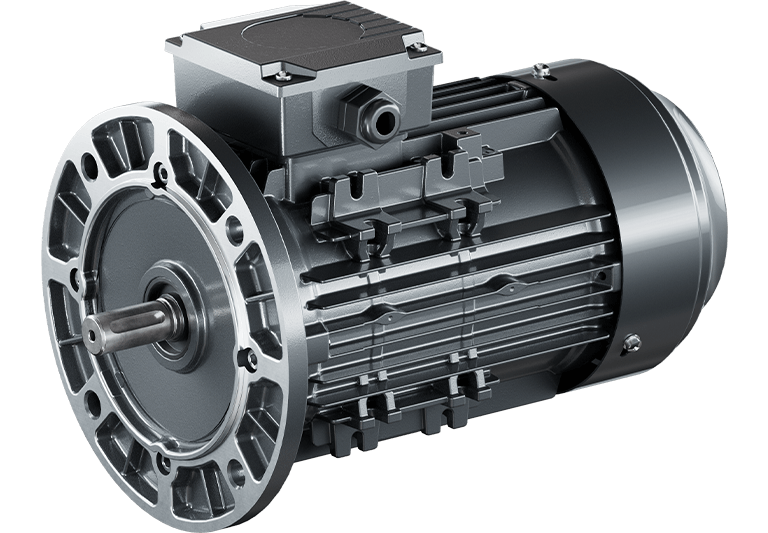

B5 Aluminum shell IE3 national standard motor

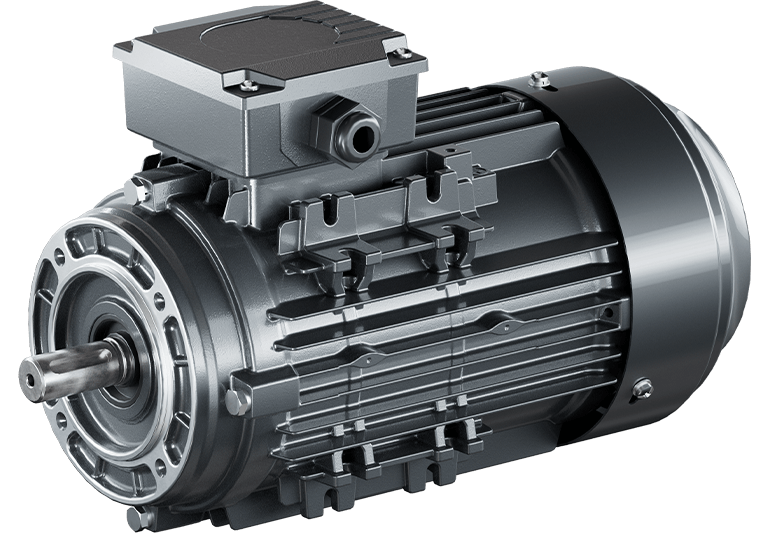

B14 Aluminum shell IE3 national standard motor
B34 Aluminum shell IE3 national standard motor

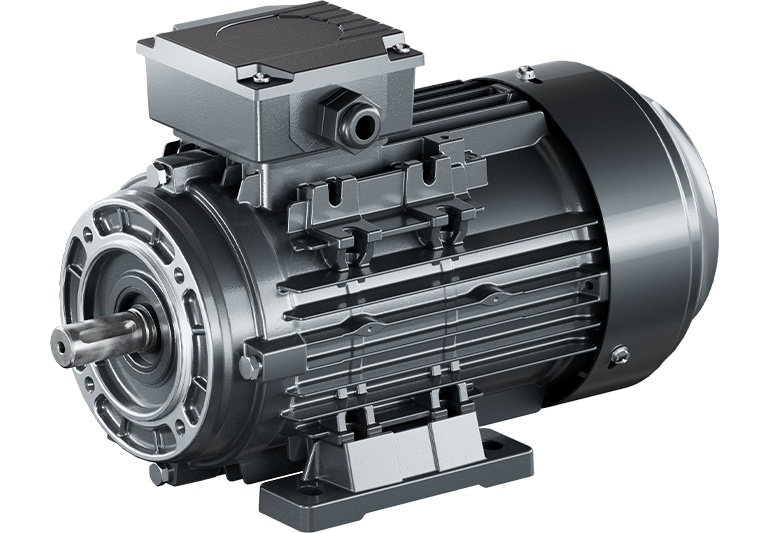

B35 Aluminum shell IE3 national standard motor
National Standard Motor

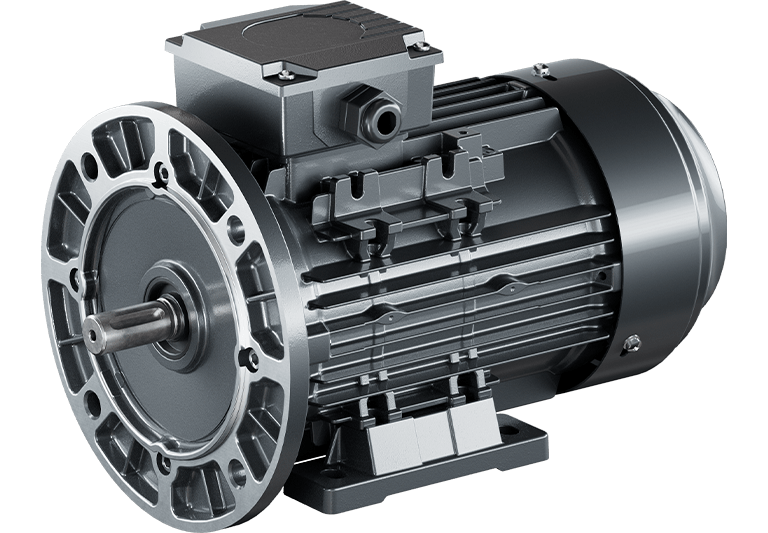

Aluminum shell IE3 national standard motor

1. It is suitable for general places and mechanical industries without special requirements, such as: metal cutting machine tools, fans, pumps, transportation machinery, mixers, agricultural machinery, food machinery, compressors and so on.

2. Installation dimensions and power levels in accordance with GB, DIN, and IEC standards.

3. ultra-high-efficiency motors with efficiency up to IE3 of IEC 60034-30:2014 and energy efficiency class 3 of GB18613-2020.

4. the motor core is made of cold rolled silicon steel sheet, F grade insulation, high heat-resistant temperature, strong impact resistance, and long insulation service life.

5. the motor shell adopts aluminum shell or cast iron, stable structure, low vibration, low noise, stable performance, safety and reliability.
